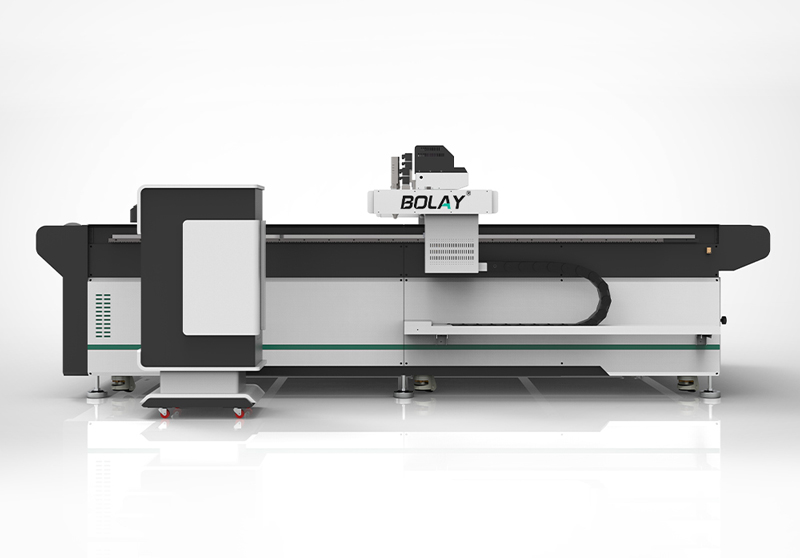

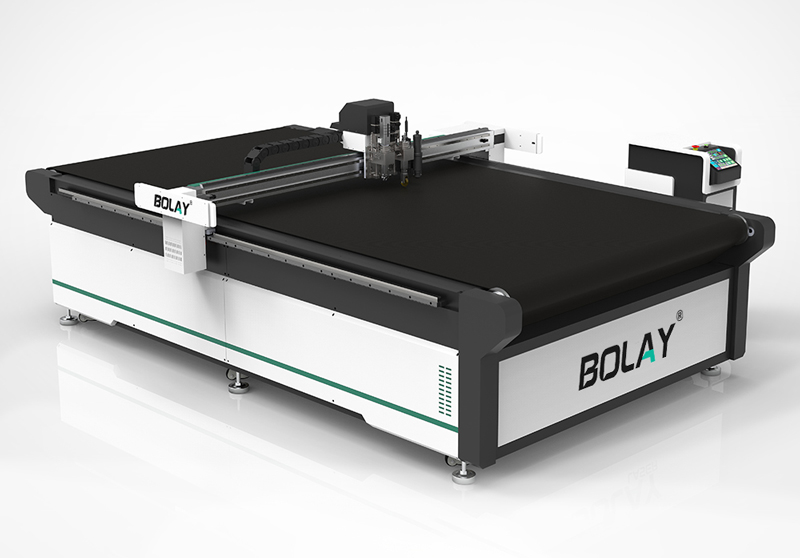

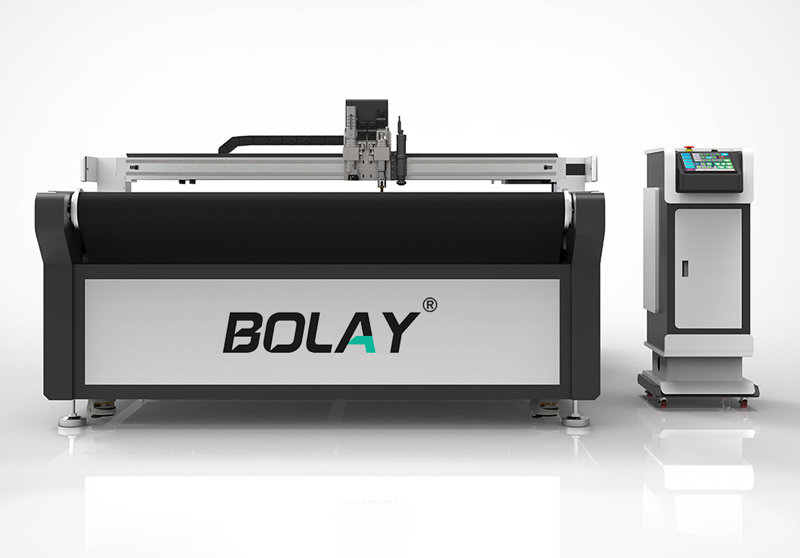

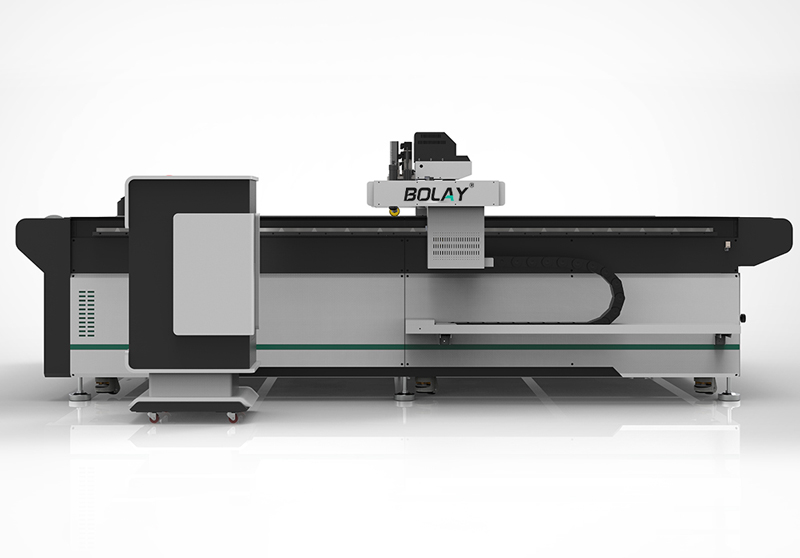

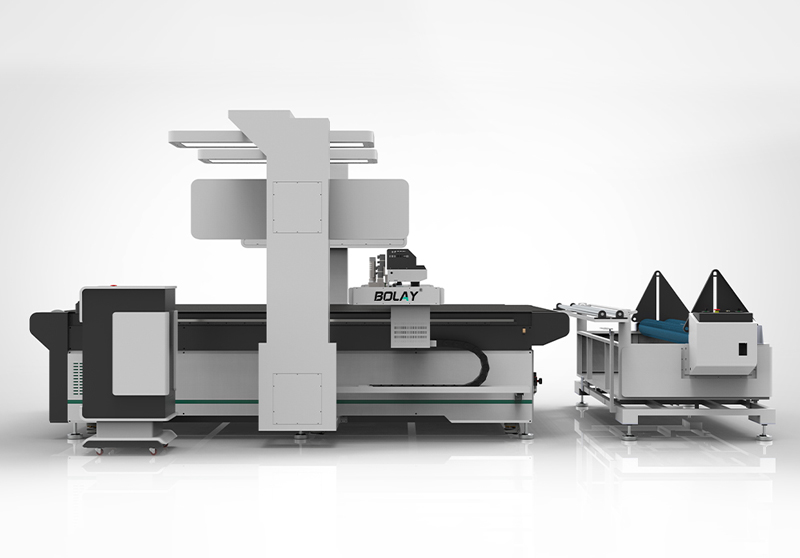

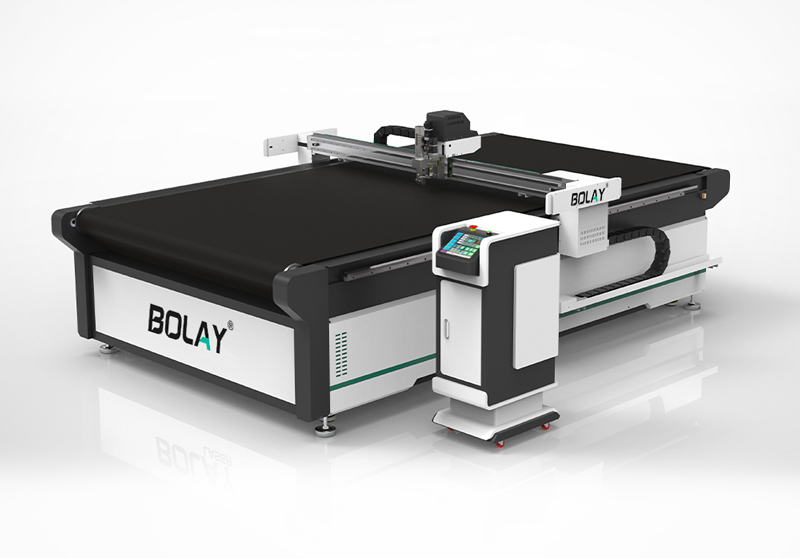

Carpet Cutting Machine | Digital Cutter
DESCRIPTION
The carpet cutting machine offers several impressive features. It can intelligently find edges and cut special-shaped carpets and printed carpets with just one click, eliminating the need for templates. This not only saves time and effort but also provides a more convenient and efficient cutting process.
By using AI intelligent master layout software, it can save more than 10% of materials compared to manual layout. This maximizes material utilization, which is crucial for cost savings and environmental sustainability.
To address the issue of deviations during automatic feeding, Bolay has developed automatic error compensation. This feature can automatically correct errors during material cutting, ensuring cutting accuracy and reducing waste. It enhances the reliability and performance of the carpet cutting machine, making it a valuable tool for carpet manufacturers and processors.
Video
Advantages
(1) Computer numerical control, automatic cutting, 7-inch LCD industrial touch screen, standard Dongling servo;
(2) High-speed spindle motor, the speed can reach 18,000 revolutions per minute;
(3) Any point positioning, cutting (vibrating knife, pneumatic knife, round knife, etc.), half-cutting (basic function), indentation, V-groove, automatic feeding, CCD positioning, pen writing (optional function);
(4) High-precision Taiwan Hiwin linear guide rail, with Taiwan TBI screw as the core machine base, to ensure accuracy and precision;
(6) Cutting blade material is tungsten steel from Japan
(7) Regin high-pressure vacuum pump, to ensure accurate positioning by adsorption
(8) The only one in the industry to use host computer cutting software, easy to install and simple to operate.
Equipment parameters
| Model | BO-1625 (Optional) |
| Maximum cutting size | 2500mm×1600mm (Customizable) |
| Overall size | 3571mm×2504mm×1325mm |
| Multi-function machine head | Dual tool fixing holes, tool quick-insert fixing, convenient and fast replacement of cutting tools, plug and play, integrating cutting, milling, slotting and other functions (Optional) |
| Tool configuration | Electric vibration cutting tool, flying knife tool, milling tool, drag knife tool, slotting tool, etc. |
| Safety device | Infrared sensing, sensitive response, safe and reliable |
| Maximum cutting speed | 1500mm/s (depending on different cutting materials) |
| Maximum cutting thickness | 60mm (customizable according to different cutting materials) |
| Repeat accuracy | ±0.05mm |
| Cutting materials | Carbon fiber/prepreg, TPU/base film, carbon fiber cured board, glass fiber prepreg/dry cloth, epoxy resin board, polyester fiber sound-absorbing board, PE film/adhesive film, film/net cloth, glass fiber/XPE, graphite/asbestos/rubber, etc. |
| Material fixing method | vacuum adsorption |
| Servo resolution | ±0.01mm |
| Transmission method | Ethernet port |
| Transmission system | Advanced servo system, imported linear guides, synchronous belts, lead screws |
| X, Y axis motor and driver | X axis 400w, Y axis 400w/400w |
| Z, W axis motor driver | Z axis 100w, W axis 100w |
| Rated power | 11kW |
| Rated voltage | 380V±10% 50Hz/60Hz |
Components of Composite material cutting machine
Multi-function machine head
Dual tool fixing holes, tool quick-insert fixing, convenient and fast replacement of cutting tools, plug and play, integrating cutting, milling, slotting and other functions. The diversified machine head configuration can freely combine standard machine heads according to different processing requirements, and can flexibly respond to various production and processing requirements. (Optional)
Components of Composite material cutting machine
All-round safety protection
Emergency stop devices and safety infrared sensors are installed at all four corners to ensure maximum operator safety during high-speed movement of the machine.
Components of Composite material cutting machine
Intelligence brings high performance
High-performance cutter controllers are equipped with high-performance servo motors, intelligent, detail-optimized cutting technology and precise, maintenance-free drives. With excellent cutting performance, low operating costs and easy integration into production processes.
Sample of Carpet Cutting Machine
Please prove you are human by selecting the Star.
Energy consumption comparison
- Cutting Speed
- Cutting Accuracy
- Material Utilization Rate
- Cutting Cost
4-6 times + Compared with manual cutting, work efficiency is improved
Bolay machine speed
Manual cutting
High precision, high efficiency, and improved material utilization
Boaly Machine cutting accuracy
Manual cutting accuracy
Automatic typesetting system saves more than 20% of materials compared with manual typesetting
Bolay machine cutting efficiency
Manual cutting efficiency
No smoke and dust, high precision, high efficiency, saving time and effort
Bolay machine cutting cost
Manual cutting cost
Product Introduction
-
Electric vibrating knife
-
Round knife
-
Pneumatic knife
Electric vibrating knife
Equipped with a wide variety of blades, it is suitable for processing different materials such as paper, cloth, leather and flexible composite materials.
– Fast cutting speed, smooth edges and cutting edges
Round knife
– Mainly used in clothing fabrics, suits, knitwear, underwear, wool coats, etc.
– Fast cutting speed, smooth edges and cutting edges
Pneumatic knife
– For materials that are soft, stretchable, and have high resistance, you can refer to them for multi-layer cutting.
– The amplitude can reach 8mm, and the cutting blade is driven by the air source to vibrate up and down.
Worry free service
-
Three year warranty
-
Free installation
-
Free training
-
Free maintenance
OUR SERVICES
-
01 /
Which materials can we cut?
The carpet cutting machine is mainly used for printed carpets, spliced carpets, and more. Applicable materials include long hair, silk loops, fur, leather, asphalt, and other carpet materials. It supports intelligent edge-finding cutting, intelligent AI typesetting, and automatic error compensation. The video is a demonstration of printed carpet edge-finding cutting for reference only.
-
02 /
What is the machine warranty?
The machine comes with a 3-year warranty (excluding consumable parts and damage caused by human factors).
-
03 /
What is the machine cutting speed?
The machine cutting speed is 0 – 1500mm/s. The cutting speed depends on your actual material, thickness, and cutting pattern.
-
04 /
How do I choose a suitable cutting tool to finish?
The machine is equipped with different cutting tools. Please tell me your cutting material and provide sample pictures, and I will give you advice.
-
05 /
What is the cutting accuracy of the machine?
The cutting accuracy of different types of carpet cutters may vary. Generally speaking, the cutting accuracy of Bolay’s carpet cutters can reach about ±0.5mm. However, the specific cutting accuracy will be affected by many factors, such as the quality and brand of the machine, the characteristics of the cutting material, thickness, cutting speed, and whether the operation is standardized. If you have high requirements for cutting accuracy, you can consult the manufacturer in detail about the specific accuracy parameters when purchasing the machine, and evaluate whether the machine meets the requirements by checking the actual cutting samples.
