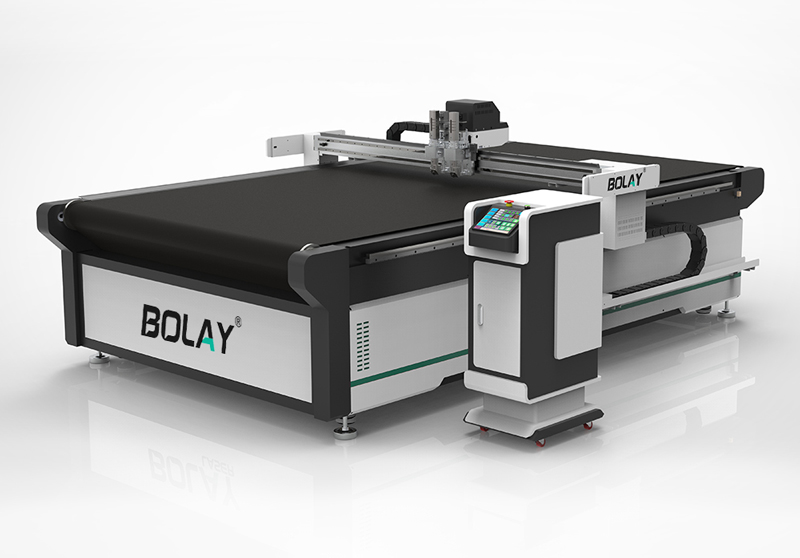

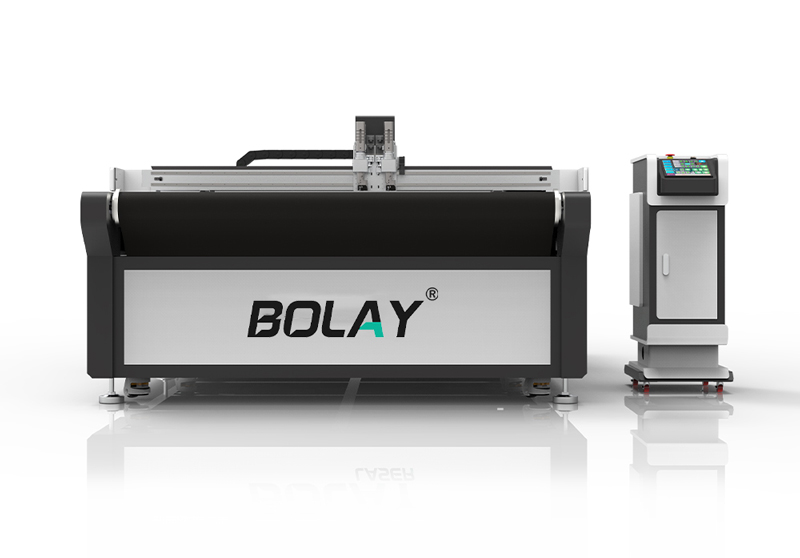

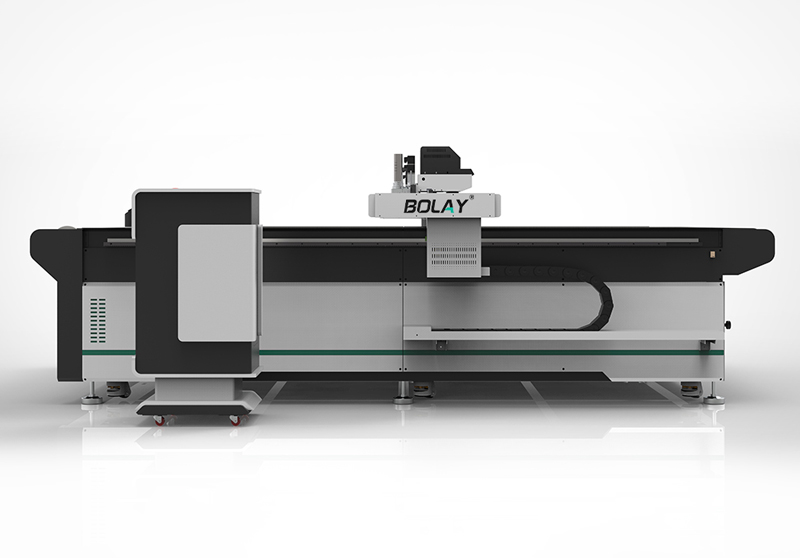

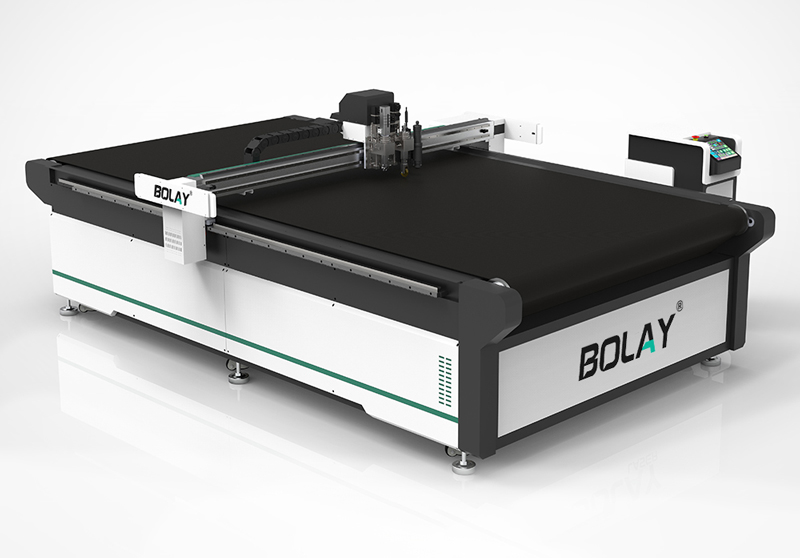

Garment Fabric Cutting Machine | Digital Cutter
DESCRIPTION
Garment Fabric cutting machine is a kind of CNC special-shaped cutting machine. The equipment is widely used in non-metallic flexible materials not exceeding 60mm, suitable for clothing cutting, proofing, edge finding and cutting of printed fabrics, silicone cloth, non-woven fabrics, plastic-coated fabrics, Oxford cloth, balloon silk, felt, functional textiles, molding materials, fabric banners, PVC banner materials, mats, synthetic fibers, raincoat fabrics, carpets, carbon fibers, glass fibers, aramid fibers, prepreg materials, automatic coil pulling, cutting and unloading. Blade cutting, smokeless and odorless, free proofing and trial cutting.
BolayCNC provides professional solutions for proofing and small batch production in the textile and garment industry. Garment Fabric cutting machine is equipped with high-speed active wheel cutter, electric vibration cutter, gas vibration cutter and third-generation punching head (optional). Whether you need to cut chiffon, silk, wool or denim, BolayCNC can provide suitable cutting tools and solutions for different types of cutting rooms such as men’s wear, women’s wear, children’s wear, fur, women’s underwear, sportswear, etc.
Video
Advantages
(1) Computer numerical control, automatic cutting, 7-inch LCD industrial touch screen, standard Delta servo;
(2) High-speed spindle motor, the speed can reach 18,000 revolutions per minute;
(3) Any point positioning, cutting (vibrating knife, pneumatic knife, circular knife, etc.), half-cutting (basic function), indentation, V-groove, automatic feeding, CCD positioning, pen writing (optional function);
(4) High-precision Taiwan Hiwin linear guide rail, with Taiwan TBI screw as the core machine base, to ensure precision and accuracy;
(5) The cutting blade is made of Japanese tungsten steel;
(6) High-pressure vacuum air pump to ensure accurate adsorption positioning;
(7) The only one in the industry to use upper computer cutting software, which is easy to install and simple to operate.
(8) Provide remote guidance installation, training, after-sales service, and free lifetime software upgrade
Equipment parameters
| Brand | BolayCNC |
| Model | BO-1625 |
| Working area | 2500mm×1600mm |
| Multi-function machine head | different tool heads can be easily replaced, with cutting and positioning needle functions |
| Tool configuration | flying knife tool, vibration tool, cutting tool, positioning tool, inkjet tool, etc. |
| Maximum running speed | 1800mm/s |
| Maximum cutting speed | 1500mm/s |
| Maximum cutting thickness | 10mm (depending on different cutting materials) |
| Cutting materials | knitting, woven, fur (such as sheep shearing) Oxford cloth, canvas, sponge, imitation leather, cotton and linen, blended fabrics and other types of clothing, bags, sofa fabrics and carpet fabrics |
| Material fixing method | vacuum adsorption |
| Repeat accuracy | ±0.1mm |
| Network transmission distance | ≤350m |
| Data transmission method | Ethernet port |
| Waste collection system | table cleaning system, automatic waste collector |

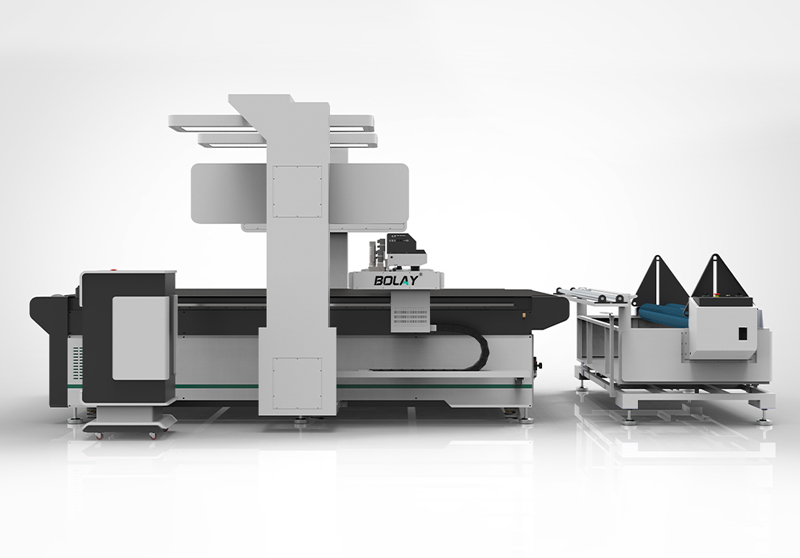

| Strip and grid alignment (optional) | projection strip and grid alignment system |
| Visual strip and grid alignment system | Chinese and English LCD touch screen on the operation panel |
| Transmission system | high-precision motor, linear guide, synchronous belt |
| Machine power | 11kW |
| Data format | PLT, HPGL, NC, AAMA, DXF, XML, CUT, PDF, etc. |
| Rated voltage | AC 380V±10% 50Hz/60Hz |
Components of Composite material cutting machine
Multi-function machine head
Dual tool fixing holes, tool quick-insert fixing, convenient and fast replacement of cutting tools, plug and play, integrating cutting, milling, slotting and other functions. The diversified machine head configuration can freely combine standard machine heads according to different processing requirements, and can flexibly respond to various production and processing requirements. (Optional)
Components of Composite material cutting machine
All-round safety protection
Emergency stop devices and safety infrared sensors are installed at all four corners to ensure maximum operator safety during high-speed movement of the machine.
Components of Composite material cutting machine
Intelligence brings high performance
High-performance cutter controllers are equipped with high-performance servo motors, intelligent, detail-optimized cutting technology and precise, maintenance-free drives. With excellent cutting performance, low operating costs and easy integration into production processes.
Sample of Garment Fabric Cutting Machine
Please prove you are human by selecting the Star.
Energy consumption comparison
- Cutting Speed
- Cutting Accuracy
- Material Utilization Rate
- Cutting Cost
4-6 times + Compared with manual cutting, work efficiency is improved
Bolay machine speed
Manual cutting
High precision, high efficiency, and improved material utilization
Boaly Machine cutting accuracy
Manual cutting accuracy
Automatic typesetting system saves more than 20% of materials compared with manual typesetting
Bolay machine cutting efficiency
Manual cutting efficiency
Bolay machine cutting cost
Manual cutting cost
Product Introduction
-
Electric vibrating knife
-
Round knife
-
Pneumatic knife
Electric vibrating knife
Equipped with a wide variety of blades, it is suitable for processing different materials such as paper, cloth, leather and flexible composite materials.
– Fast cutting speed, smooth edges and cutting edges
Round knife
– Mainly used in clothing fabrics, suits, knitwear, underwear, wool coats, etc.
– Fast cutting speed, smooth edges and cutting edges
Pneumatic knife
– For materials that are soft, stretchable, and have high resistance, you can refer to them for multi-layer cutting.
– The amplitude can reach 8mm, and the cutting blade is driven by the air source to vibrate up and down.
Worry free service
-
Three year warranty
-
Free installation
-
Free training
-
Free maintenance
OUR SERVICES
-
01 /
Which materials can we cut?
The garment fabric cutting machine is a CNC special-shaped cutting machine. It is widely used for non-metallic flexible materials not exceeding 60mm. It is suitable for clothing cutting, proofing, edge finding and cutting of printed fabrics, silicone cloth, non-woven fabrics, plastic-coated fabrics, Oxford cloth, balloon silk, felt, functional textiles, molding materials, fabric banners, PVC banner materials, mats, synthetic fibers, raincoat fabrics, carpets, carbon fibers, glass fibers, aramid fibers, prepreg materials. It also features automatic coil pulling, cutting, and unloading. It uses blade cutting, which is smokeless and odorless, and offers free proofing and trial cutting.
-
02 /
What is the machine cutting speed?
The machine cutting speed is 0 – 1500mm/s. The cutting speed depends on your actual material, thickness, and cutting pattern, etc.
-
03 /
How do I choose a suitable cutting tool to finish?
The machine comes with different cutting tools. Please tell me your cutting material and provide sample pictures, and I will give you advice. It is suitable for clothing cutting, proofing, and edge finding and cutting of printed fabrics, etc. It uses blade cutting, with no burnt edges and no odor. The self-developed automatic typesetting software and automatic error compensation can increase the material utilization rate by more than 15% compared to manual work, and the accuracy error is ±0.5mm. The equipment can automatically typeset and cut, saving multiple workers and improving production efficiency. It is also customized and developed according to the characteristics of different industries to meet various cutting needs.
-
04 /
What is the machine warranty?
The machine has a 3-year warranty (not including consumable parts and human damage).
