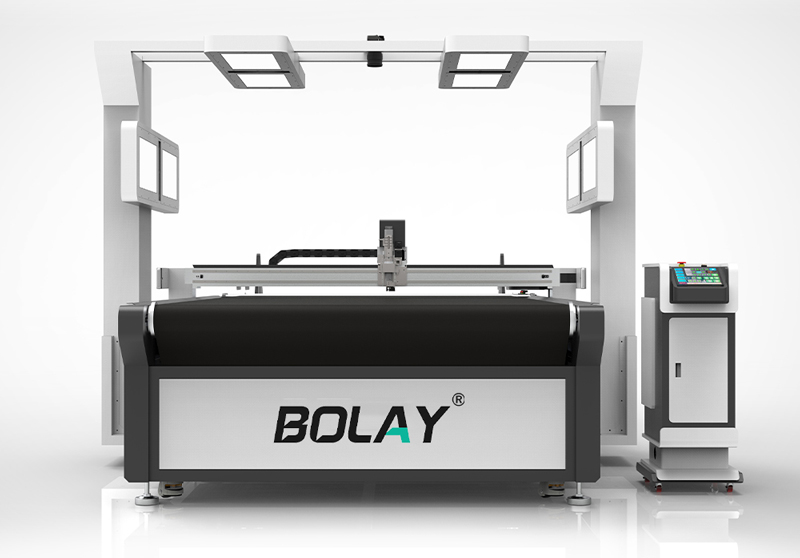

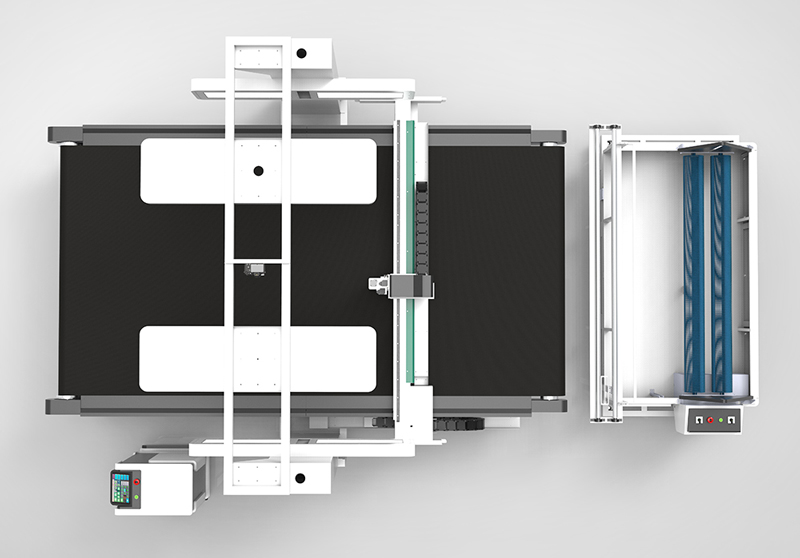

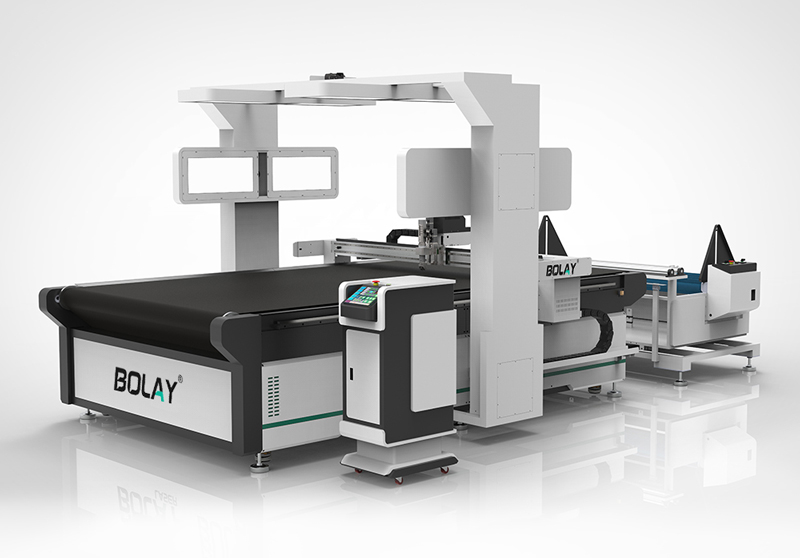

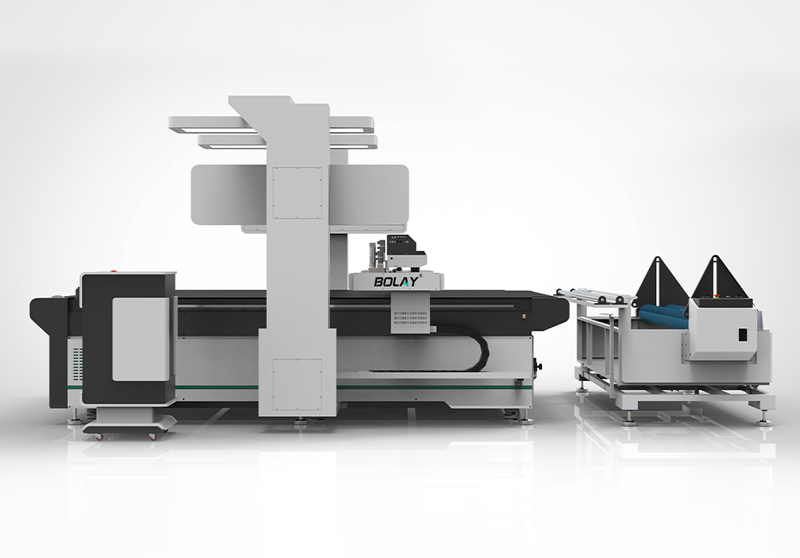

Shoes/Bags Multi-Layer Cutting Machine | Digital Cutter

Industry name: Shoes/Bags Multi-layer Cutting Machine

Cutting thickness: Maximum thickness does not exceed 60mm

Product features: Shoes/Bags Multi-layer Cutting Machine improves your production efficiency and flexibility in the footwear industry! It eliminates the need for expensive cutting dies and reduces labor requirements while efficiently processing leather, fabrics, soles, linings and template materials and ensuring the highest quality. Excellent cutting performance, low operating costs and optimized workflow ensure a quick return on your investment.

DESCRIPTION

In the face of the current market situation of “many styles and small quantities,” enterprises indeed face the challenge of balancing productivity and profitability. The computer numerical control leather cutting system emerges as a viable solution for batch production.

The batch production approach characterized by more batches and fewer orders helps save material storage. This is crucial as it reduces inventory costs and optimizes space utilization. When receiving orders of different quantities, enterprises can make flexible choices between automated continuous production and quantitative manual layout processing. This adaptability allows companies to respond efficiently to diverse order sizes and production demands.

The combination of hardware elements such as CCD camera tracking positioning, hanging large visual projection system, rolling table, and dual-operation head is a significant asset. These components work together to truly provide intelligent cutting solutions for companies of various sizes. The CCD camera tracking positioning ensures accurate cutting by precisely locating the material, reducing errors and waste. The hanging large visual projection system offers a clear view of the cutting process, facilitating monitoring and quality control. The rolling table enables smooth material handling, enhancing workflow efficiency. The dual-operation head provides increased productivity by allowing simultaneous cutting operations, reducing production time.

Overall, this integrated system offers a comprehensive and intelligent approach to leather cutting, enabling enterprises to meet the challenges of the modern market while optimizing productivity and profitability.

Video

ShoesBags Multi-layer Cutting Machine

No odor, no black edges, physical cutting, shoe mesh fabric

Advantages

1. Projecting the cutting graphic image through the projector can reflect the layout position of the graphic in real time, and the layout is efficient and fast, saving time, effort and materials.
2. The double heads cut at the same time, doubling the efficiency. Meet the production goals of small batches, multiple orders and multiple styles.
3. Widely used, it can be used for cutting genuine leather and other flexible materials. Widely used in the shoemaking industry, luggage industry, decoration industry, etc.
4. Programmable multi-axis motion controller, stability and operability reach the leading technical level at home and abroad. The cutting machine transmission system adopts imported linear guides, racks, and synchronous belts, and the cutting accuracy is completely
5. Achieve zero error in the round-trip origin.
6. Friendly high-definition touch screen human-machine interface, convenient operation, simple and easy to learn. Standard RJ45 network data transmission, fast speed, stable and reliable transmission.

Equipment parameters

Model BO-1625 (Optional)
Maximum cutting size 2500mm×1600mm (Customizable)
Overall size 3571mm×2504mm×1325mm
Multi-function machine head Dual tool fixing holes, tool quick-insert fixing, convenient and fast replacement of cutting tools, plug and play, integrating cutting, milling, slotting and other functions  (Optional)
Tool configuration Electric vibration cutting tool, flying knife tool, milling tool, drag knife tool, slotting tool, etc.
Safety device Infrared sensing, sensitive response, safe and reliable
Maximum cutting speed 1500mm/s (depending on different cutting materials)
Maximum cutting thickness 60mm (customizable according to different cutting materials)
Repeat accuracy ±0.05mm
Cutting materials Carbon fiber/prepreg, TPU/base film, carbon fiber cured board, glass fiber prepreg/dry cloth, epoxy resin board, polyester fiber sound-absorbing board, PE film/adhesive film, film/net cloth, glass fiber/XPE, graphite/asbestos/rubber, etc.
Material fixing method vacuum adsorption
Servo resolution ±0.01mm
Transmission method Ethernet port
Transmission system Advanced servo system, imported linear guides, synchronous belts, lead screws
X, Y axis motor and driver X axis 400w, Y axis 400w/400w
Z, W axis motor driver Z axis 100w, W axis 100w
Rated power 15kW
Rated voltage 380V±10% 50Hz/60Hz

Components Of Composite Material Cutting Machine

Components-of-Composite-material-cutting-machine1

Multi-function machine head

Dual tool fixing holes, tool quick-insert fixing, convenient and fast replacement of cutting tools, plug and play, integrating cutting, milling, slotting and other functions. The diversified machine head configuration can freely combine standard machine heads according to different processing requirements, and can flexibly respond to various production and processing requirements. (Optional)

Components Of Composite Material Cutting Machine

Components-of-Composite-material-cutting-machine3

Smart nesting system

This feature is more reasonable compared with the normal patterms arranging.It’s easier to operate and waste saving. it’s capable of arranging odd number of pattems, cutting leftover materials and dividedcutting of large pattem.

Components Of Composite Material Cutting Machine

Components-of-Composite-material-cutting-machine4

Projector positioning system

Instant Preview of Nesting Effects -convenient, fast.

Components Of Composite Material Cutting Machine

Components-of-Composite-material-cutting-machine5

Defect Detecting Function

For Genuine leather, this function can automatic detect and avoid defect on the leather during nesting and cutting,the utilization rate of genuine leather canreach between85-90%, save the material.

Energy consumption comparison

  • Cutting Speed
  • Cutting Accuracy
  • Material Utilization Rate
  • Cutting Cost

4-6 times + Compared with manual cutting, work efficiency is improved

High precision, high efficiency, time-saving and labor-saving, blade cutting does not damage the material.
1500 mm/s

Bolay machine speed

300 mm/s

Manual cutting

High precision, high efficiency, and improved material utilization

Cutting accuracy ±0.01mm, smooth cutting surface, no burrs or loose edges.
±0.05 mm

Boaly Machine cutting accuracy

±0.4 mm

Manual cutting accuracy

Automatic typesetting system saves more than 20% of materials compared with manual typesetting

80 %

Bolay machine cutting efficiency

60 %

Manual cutting efficiency

15 degrees/h power consumption

Bolay machine cutting cost

200 USD+/Day

Manual cutting cost

Product Introduction

  • Electric vibrating knife

    Electric vibrating knife

  • Round knife

    Round knife

  • Pneumatic knife

    Pneumatic knife

  • Universal Drawing Tool

    Universal Drawing Tool

Electric vibrating knife

Electric vibrating knife

Suitable for cutting medium density materials.
Equipped with a wide variety of blades, it is suitable for processing different materials such as paper, cloth, leather and flexible composite materials.
– Fast cutting speed, smooth edges and cutting edges
Round knife

Round knife

The material is cut by a high-speed rotating blade, which can be equipped with a circular blade, which is suitable for cutting all kinds of clothing woven materials. It can significantly reduce the drag force and help to completely cut off every fiber.
– Mainly used in clothing fabrics, suits, knitwear, underwear, wool coats, etc.
– Fast cutting speed, smooth edges and cutting edges
Pneumatic knife

Pneumatic knife

The tool is driven by compressed air, with an amplitude of up to 8mm, which is particularly suitable for cutting flexible materials and is suitable for a wider variety of material, with special blades to cut multi-layer materials.
– For materials that are soft, stretchable, and have high resistance, you can refer to them for multi-layer cutting.
– The amplitude can reach 8mm, and the cutting blade is driven by the air source to vibrate up and down.
Universal Drawing Tool

Universal Drawing Tool

The Universal Drawing Tool is a cost-effective tool for precise marking/drawing on materials such as fabric, leather, rubber or Teflon. Common applications include drawing assembly marks, linear symbols and text. This Universal Drawing Tool is very cost-effective because it can use a variety of standard drawing/drawing tools with different line widths, such as roller pens and ballpoint pen ink cartridges.

Worry free service

  • Three year warranty

    Three year warranty

  • Free installation

    Free installation

  • Free training

    Free training

  • Free maintenance

    Free maintenance

OUR SERVICES

  • 01 /

    Which materials can we cut?

    The Shoes/Bags Multi-layer Cutting Machine is highly efficient and flexible in the footwear industry. It can process leather, fabrics, soles, linings, and template materials without the need for expensive cutting dies. It reduces labor requirements while ensuring the highest quality cuts.

    pro_24
  • 02 /

    What is the machine warranty?

    The machine comes with a 3-year warranty (excluding consumable parts and damage caused by human factors).

    pro_24
  • 03 /

    Can I customize?

    Yes, we can help you design and customize the machine’s size, color, brand, etc. Please tell us your specific needs.

    pro_24
  • 04 /

    What is the machine's consumable part and lifetime?

    This is related to your work time and operating experience. Generally, consumable parts may include cutting blades and certain components that wear out over time. The lifetime of the machine can vary depending on proper maintenance and usage. With regular maintenance and proper operation, the machine can have a long service life.
